KC100

KC100

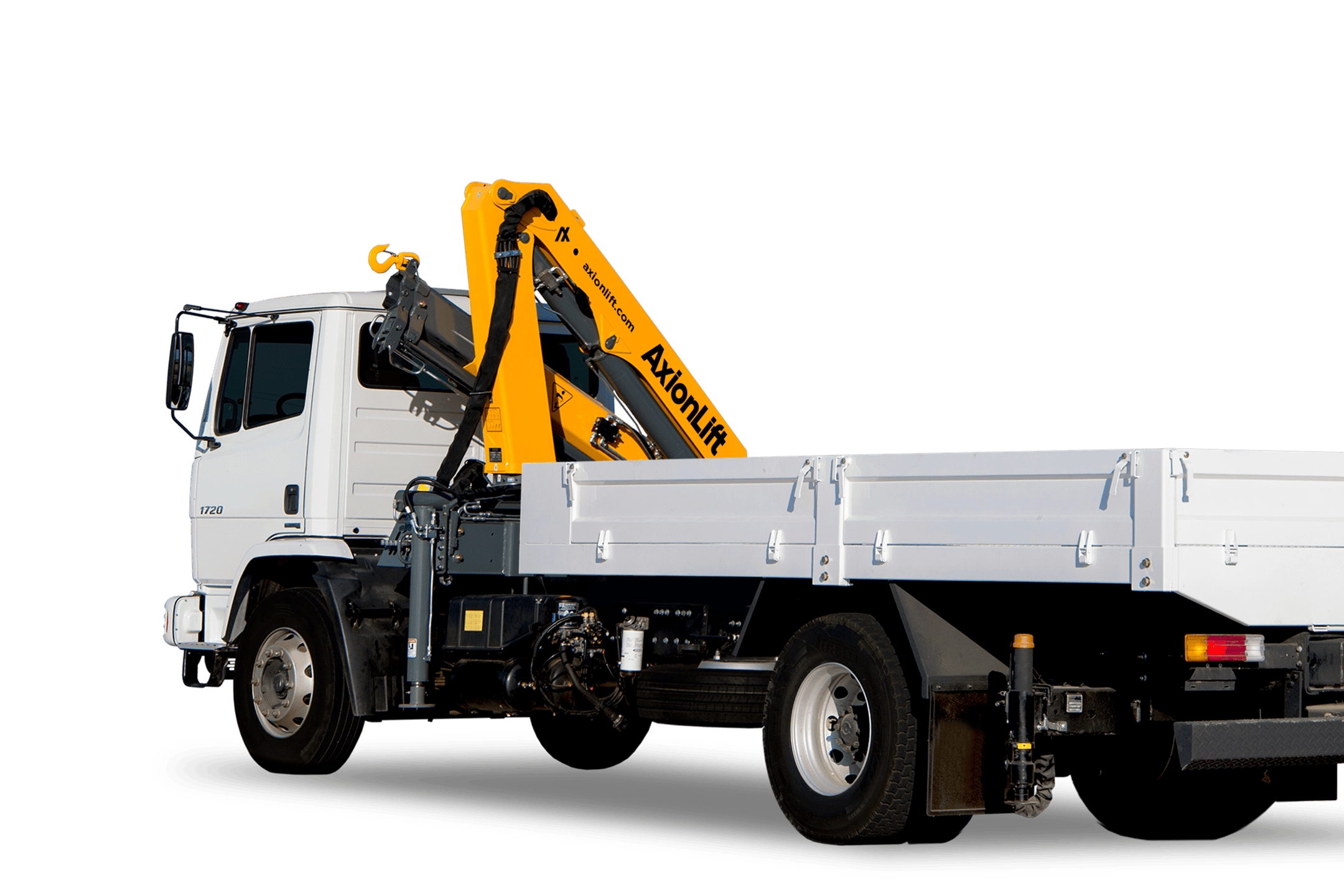

Knuckle Crane

With a capacity of 68,930 lb ft and a reach of up to 38 ft, the KC100 stands out for its power and flexibility. Designed for demanding jobs, it supports up to three hydraulic and two manual extensions, offering compatibility with multiple accessories to adapt to diverse applications.

68,930 lb ft

Lifting Moment

38 ft

Horizontal Outreach

3,014 lb

Weight

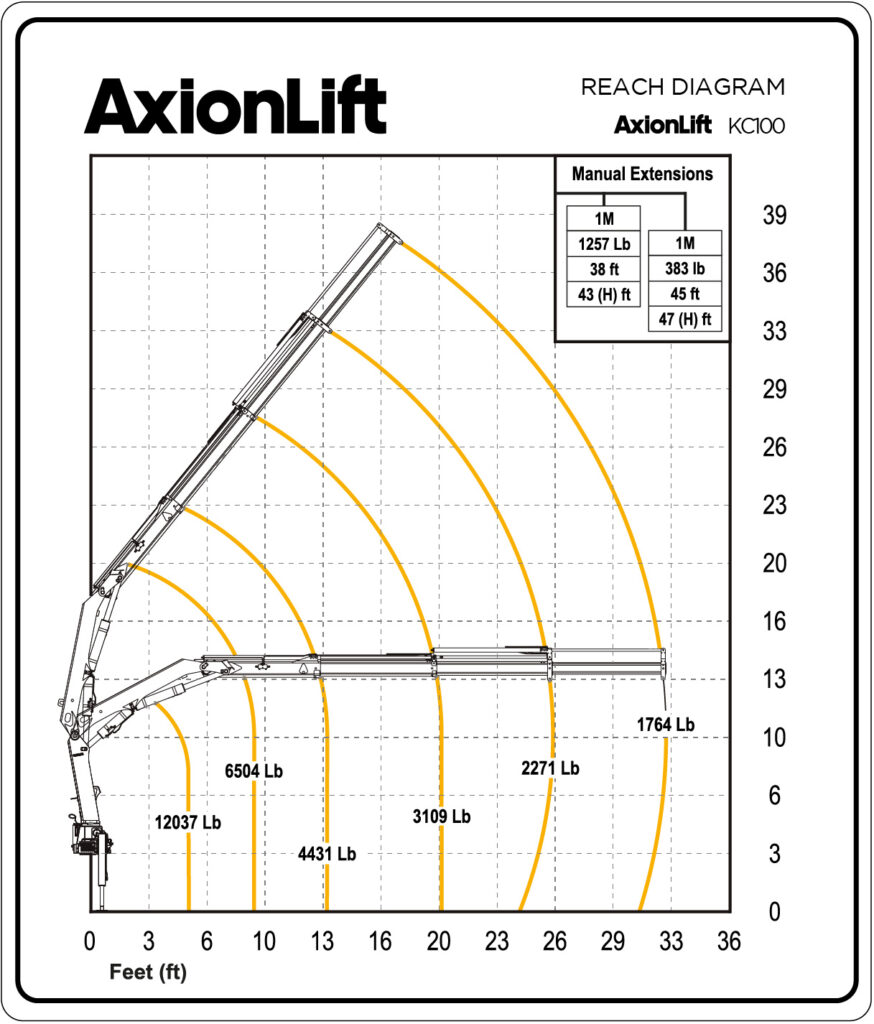

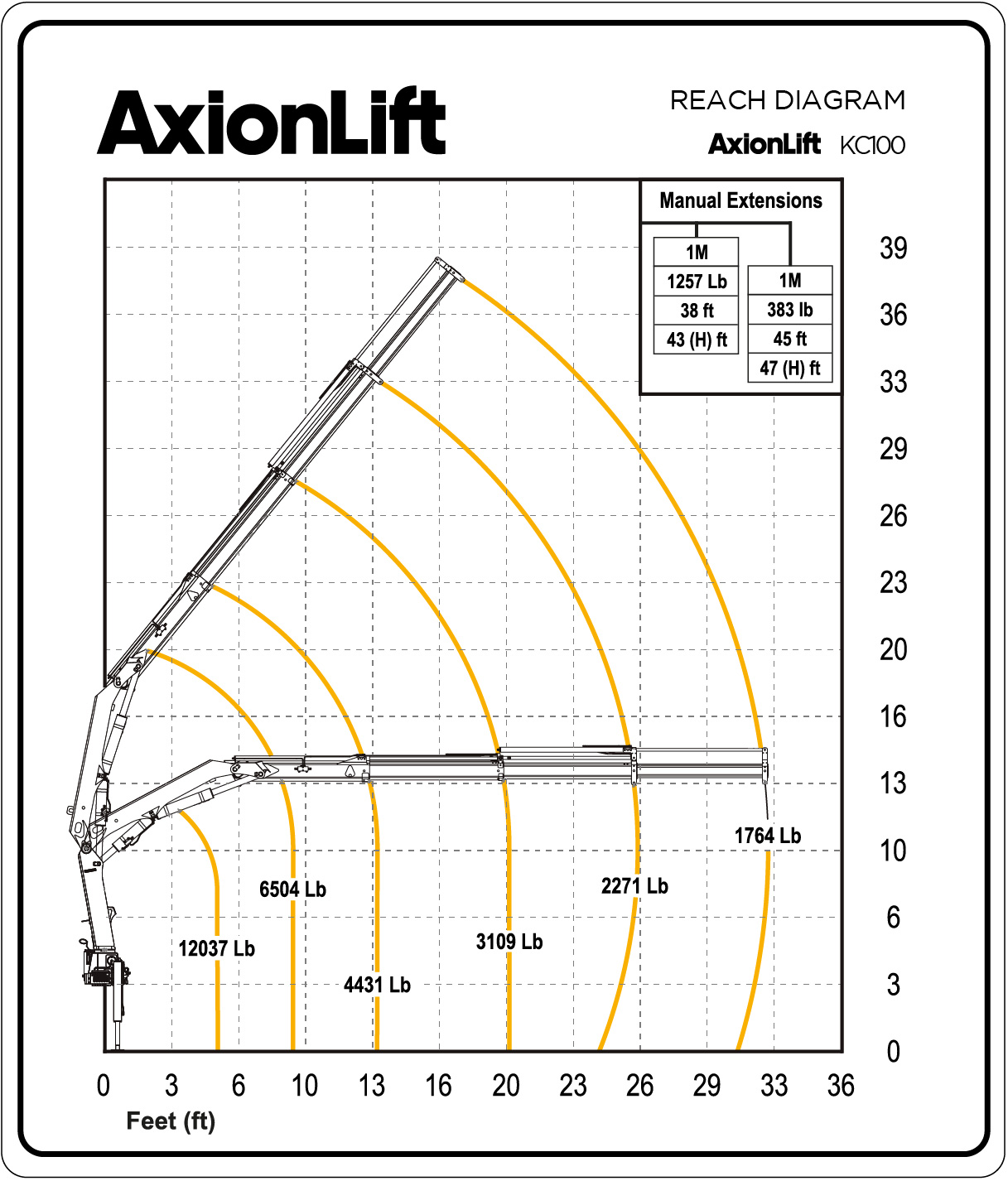

Reach Diagram

Standardized Equipment

Lifting moment
68,930 lb ft
Slewing angle
400°
Operating pressure
3,616 psi
Pump capacity
8.0 - 12.0 US Gal/min
